EDNA – Engineering Design Lineage CLI

EDNA (eng-dna) is a lightweight CLI that gives engineers a portable, file-system-native memory of how designs, scripts, simulations, and reports evolve. It tags artefacts with stable DNA tokens, writes sidecars instead of mutating source files, and keeps lineage in a local SQLite database—no server required.

At a glance

• What it is: CLI for engineering lineage with stable DNA tokens and a local SQLite memory store.
• Who it’s for: Engineers, analysts, and simulation teams working in file/Git-centric workflows.
• Why it exists: Traditional PLM/PDM is heavy; EDNA makes lineage as simple as running a CLI in your repo.
• Key capabilities: Tag artefacts, link derivations, trace and graph lineage, export/import bundles, repair sidecars.

Contents

Why EDNA? The market gap it fills

• PLM/PDM systems are heavy, centralised, and slow to fit quick local workflows.
• Most teams reconstruct history from ad-hoc folders, filenames, and chat/email trails.
• There’s rarely a lightweight, CLI-first way to tag artefacts with stable IDs, capture derived_from/validated_by lineage across CAD/CFD/FEA/scripts/reports, and ship that lineage with a project via Git—without a server.
• EDNA is a “Git-like” lineage CLI: local, SQLite-backed, scriptable, and portable via JSON export/import bundles.

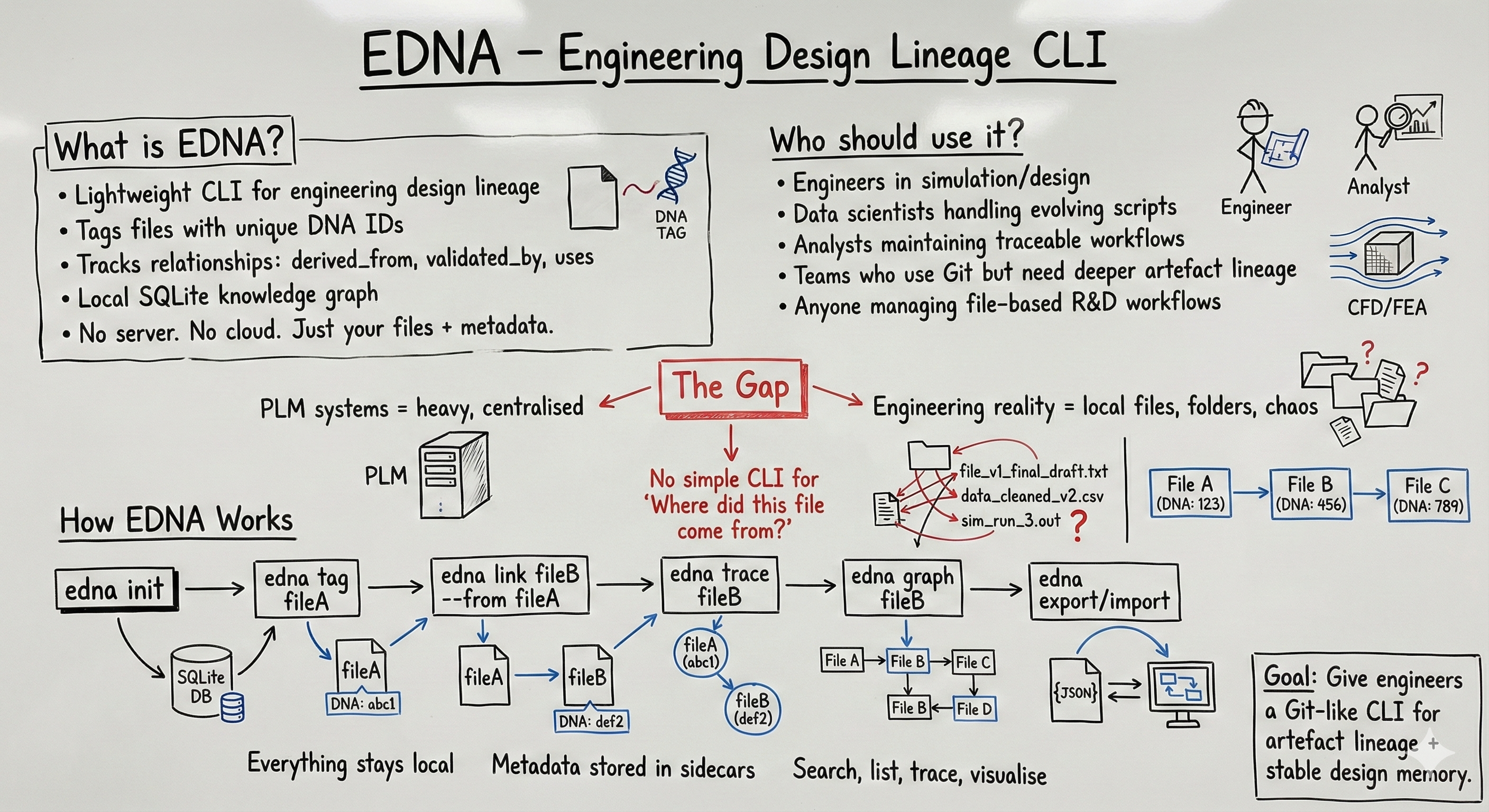

How EDNA works (high level)

• DNA tokens: Immutable IDs assigned per artefact; moving or renaming files does not change the DNA.
• SQLite lineage store: eng_dna.db holds artefacts, edges, tags, notes, events, and projects.
• Sidecars + embedded markers: Most formats use filename.ext.edna JSON sidecars (DNA, hash, type, path). Some text formats can embed metadata in comments, but sidecars keep hashes honest by default.
• Lineage graph: Nodes are artefacts; edges capture relations like derived_from, uses, validated_by, and supersedes.
• Events: created, derived, moved, versioned, sidecar_restored, etc., log the story over time.

Core workflows

Initialise a workspace and project

edna init
edna project add demo --name "Demo Build"

Tag files with context

edna tag cad/wing.sldprt --type cad --project aero --tag baseline --description "Initial loft"
edna tag reports/loads.md --type report --tag review --project aero
edna tag scripts/cleanup.py --type script --tag util

Link derived artefacts

edna link results/run1_pressures.csv \
  --from cfd/run1.jou \
  --relation derived_from \
  --reason "post-processing"

Trace lineage

edna trace results/run1_pressures.csv

Visualise the graph

edna graph cad/wing.sldprt --scope full --direction LR > lineage.mmd

Export/import portable lineage

edna export --project demo --output edna_lineage_demo.json
edna import edna_lineage_demo.json --dry-run
edna import edna_lineage_demo.json

Repair and rescan

edna rescan ./workspace

Detailed CLI usage

Search across tags, types, and projects

edna search --tag baseline --project aero
edna search --type cad

Correct mistaken lineage

# Remove an incorrect derived_from edge but keep an audit trail
edna unlink results/run1_pressures.csv \
  --from cfd/run1.jou \
  --relation derived_from

# Preview unlinking without DB changes
edna unlink results/run1_pressures.csv \
  --from cfd/run1.jou \
  --relation derived_from \
  --dry-run

Day in the life – designer iterating a geometry

edna init
edna project add aero --name "Wing Study"
edna tag cad/wing.sldprt --type cad --tag v1 --project aero
edna tag cfd/mesh.jou --type cfd --project aero --tag v1
edna link cfd/mesh.jou --from cad/wing.sldprt --relation derived_from --reason "meshing"

# Designer tweaks geometry (new version auto-linked)
edna tag cad/wing.sldprt --type cad --tag v2
edna tag cfd/mesh.jou --type cfd --tag v2 --force-overwrite
edna link cfd/mesh.jou --from cad/wing.sldprt --relation derived_from --reason "meshing update"

edna graph cad/wing.sldprt --scope full --direction LR > lineage.mmd

Pathology and recovery

# Missing sidecar → automatic recreation on show/tag/rescan
rm reports/day1.md.edna
edna show reports/day1.md

# Retagging identical content → same DNA
edna tag reports/day1.md --tag review

# Force hash overwrite when needed
edna tag reports/day1.md --force-overwrite --description "hotfix without new version"

# Work-in-progress saves keep the same DNA but log wip events
edna tag reports/day1.md --mode wip

# Corrupted sidecar is ignored and repaired
printf '{bad json' > reports/day1.md.edna
edna show reports/day1.md

Lineage diagram (conceptual)

Projects: [aero]

edna_parent1 ---- derived_from ----> edna_childA
     |                                   |
     | linked (relation=notes)           | derived_from
     v                                   v
  events (created, moved, versioned)  edna_childB

Export, trace, and graph

edna trace results/new.csv
edna graph results/new.csv > lineage.mmd
edna graph results/new.csv --format dot --scope full --direction LR > lineage.dot

edna export --project demo --output edna_lineage_demo.json
edna import edna_lineage_demo.json --dry-run
edna import edna_lineage_demo.json

Project management

edna project add demo --name "Demo Build"
edna project list
edna project show demo
edna project files demo
edna project delete demo --dry-run
edna project delete demo --force
edna project delete demo --purge-sidecars --dry-run
edna project delete demo --purge-sidecars --force

Rescanning and repair

edna rescan ./workspace

FAQ

• Why do DNA tokens never change? They are immutable IDs; new content creates a new DNA linked to its parent so history stays auditable.
• Why is embedding metadata disabled by default? Embedded markers would mutate files and hashes; sidecars keep content untouched until hashing can ignore embedded markers.
• How does EDNA behave when files move? On show/tag/rescan, EDNA normalises the new path, rewrites the sidecar, and logs a moved event without changing DNA.
• How does EDNA detect versions? A hash mismatch creates a new artefact and derived_from edge unless --force-overwrite is provided.

Learn more

• Source: edna on GitHub
• Design notes: Background.md and USAGE.md
